Aramid reinforced monolithic TPU conveyor belts

Habasit Cleandrive aramid reinforced monolithic TPU conveyor belts are recognized for their safe and hygienic food processing performance. Their significant advantages include a uniform surface without sink marks, and embedded cords that guarantee true belt length without creep. The belts’ advanced technology and design meet the most stringent hygiene requirements while delivering exceptional performance, reliability, and cost-efficiency.

Habasit Cleandrive belts reduce the design work required when constructing a conveyor. Their zero-tension belt design eliminates the need for special active sprocket engagement, which both reduces complexity and cost, and extends the belt lifetime due to less abrasion. The premium TPU material offers extraordinary hydrolysis and microbiological resistance. The belts’ closed smooth surface is essential for wet applications.

Belt design

The fully extruded monolithic belt design of Habasit Cleandrive belts has no fabric members that could fray during use and pose a food safety risk. The solid yet flexible belt design is also free of the cavities, joining rods and crevices normally found in hinged belts, making Habasit Cleandrive belts very easy to clean.

Habasit Cleandrive conveyor belts have a flexible yet strong construction that permits the smallest possible pulley diameters. This minimizes product damage and product losses in transfer situations and improves processing yield.

Hygienic design plays an increasingly important role in food-safe production. Smooth, rounded shapes make it easy to remove foodstuff residues – even on the reverse of the belt.


Our proprietary manufacturing process enables us to produce Habasit Cleandrive belts completely free of sink marks. This facilitates increased
scraper efficiency, since residual products on the belt surface can be safely removed by the scraper.



Browse the wide selection of Habasit belts, accessories, and conveyor components


Habasit Cleandrive belts
meet all relevant requirements
for food contact materials

Discover Habasit Cleandrive belts

Habasit Cleandrive belts are manufactured in two versions: sprocket driven positive drive, and pulley driven friction drive, enabling them to cover a wide range of applications.

Positive drive belts

The Habasit Cleandrive belt design includes aramid cord reinforcement for dimensional stability. This permits continuous and reliable sprocket engagement, which results in reduced belt wear, maintenance, and downtime.

Zero tension means that no extra forces are required other than the tension provided by the belt’s tare weight to keep the drive bars properly engaged within the sprockets.


Technology

Positive drive belts are sprocket driven, with either drive bars or teeth positioned across the entire belt width at a certain pitch, or with lugs. Lugs are transverse interrupted drive bars, which are placed at certain distances along the belt’s running side to provide self-tracking.


Cleandrive_61.tif
Cleandrive_65.tif

Friction drive belts

The Habasit Cleandrive friction drive aramid reinforced monolithic conveyor belt delivers significant advantages compared to conventional conveyor belts in dry and wet applications.

Flexible and strong construction permits the smallest possible pulley diameters, thus minimizing product damage and loss in narrow transfers.

Technology

With friction drive belts there is no positive engagement with the driving pulley. The pulley transfers the drive force from the motor to the belt, while friction between the pulley and the belt surface ensures power transmission.


What's new?

AdobeStock_485395443.jpeg Blog

Helping Customers have a food-safe Thanksgiving

Consumers rely on their trusted turkey brands for delicious, food-safe birds. But a lot can go wrong between store and plate, particularly in warm domestic kitchens. Habasit supports food processors with an extensive range of hygienically designed, food-safe conveying solutions for every poultry application.
DSCF0630-Edit.jpg Events

Smarter, safer, more precise packaging operations

Habasit is heading to Pack Expo International in Chicago, showcasing the dependable, innovative, and premium-quality belting solutions that keep your packaging operations in motion. Meet us at booth #6149 in the North Building at McCormick Place, Chicago, from 23rd to 26th October 2022.
Habasit17-07-2018_3A7532.jpg Events

Bakery belting needs covered at IBIE 2022

IBIE, the International Baking Industry Exposition, opens its doors in Las Vegas from September 17th to 21st. Habasit Experts are looking forward to seeing you at this largest industry event in the Northern Hemisphere. Visit us at booth #5319 and discover the belting solutions that have all your bakery needs covered.
shutterstock_1493028374.jpg Events

Visit us at Motek

Visit us at Motek in Stuttgart from October 5th to 8th. Hall 3, booth 3330

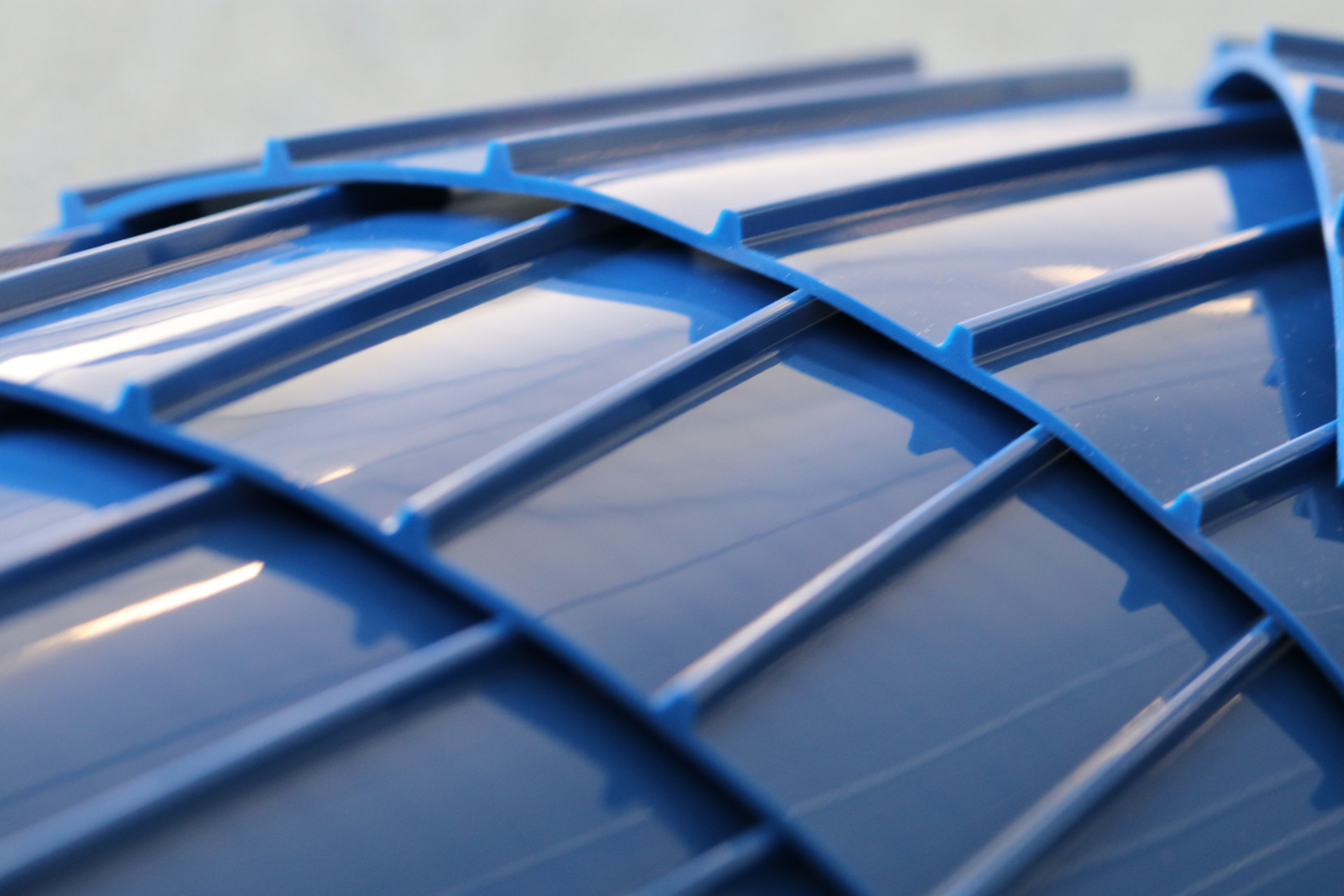

IMG_1631.JPG Blog
